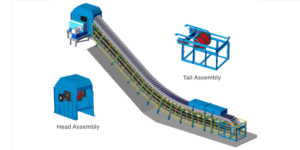

Clinker conveyor is designed for the continuous horizontal and inclined conveying of dry granular materials with a temperature below 350°C and a particle size of less than 100 mm. With a conveying capacity of up to 1,500 t/h, it can be used for silo-top feeding and bidirectional conveying at the top of the silo. Trough type and bucket type configurations are available to meet different working conditions. The product features advanced structure, stable operation, convenient maintenance, and long service life of key components.

Pan Conveyor Spare Parts

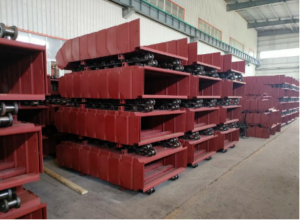

Pan		Manufactured through intelligent production processes covering cutting, rolling forming, welding, and coating. They offer high machining accuracy and close assembly fit to prevent material leakage. Different materials can be selected according to actual site conditions.

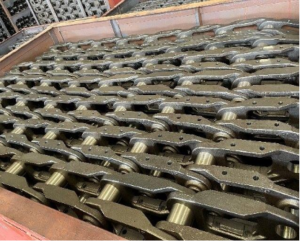

Chain		We can supply drop forged chains and various plate chains for clinker conveyors, NE/NSE bucket elevators, apron feeders, stacker reclaimers, and other equipment, and customized solutions are available according to your requirements.

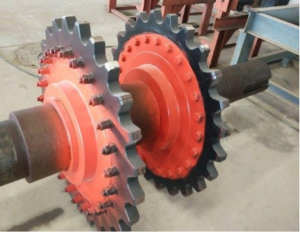

Sprocket		The sprocket ring is integrally forged from alloy steel and processed through quenching and tempering as well as surface hardening treatment, which helps extend its service life.

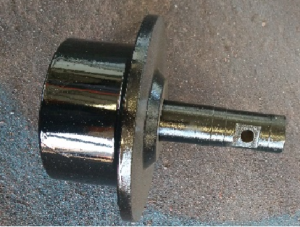

Roller		The roller is formed by precision die forging, and the rolling surface is treated with surface hardening, providing higher wear resistance and strength. Precision bearings are installed inside the hub, with excellent sealing performance to effectively prevent the intrusion of contaminants.
